Wavecom TnP-500 Review
The Pros –Speeds up the entire test and tag process. The ability to print tag label’s onsite and record appliances with ease. Comes with WinPAT’s software and there’s no additional cost for adding multiple logo’s on your printed tag. Generation 6 has an in-built Isolation Transformer.
The Cons – Mains powered only limits flexibility. Can be harder to setup to use for beginners.
The Bottom Line – For users testing a large number of appliances, the TnP-500 is a very safe choice as it automates your usual duties. The new Generation 6 model refines an already effective test and tag kit, now offering an in-built Isolation Transformer for greater convenience.
Compare To Similar Units
Key Features of TNP-500 Generation 6

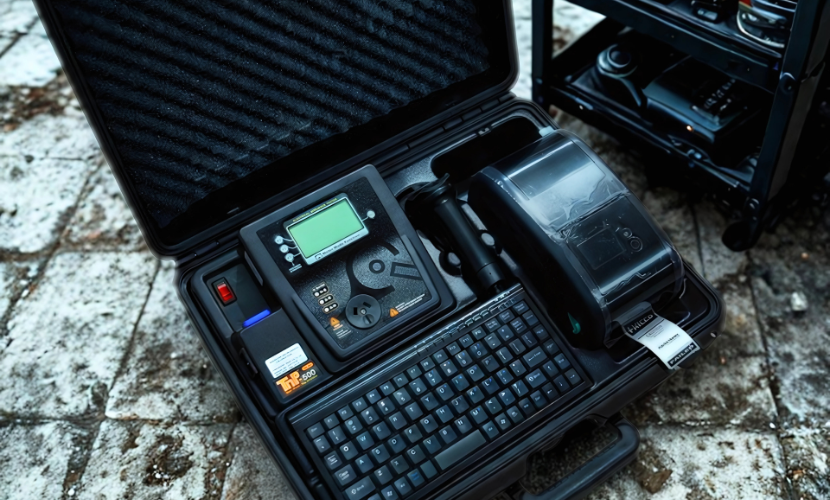

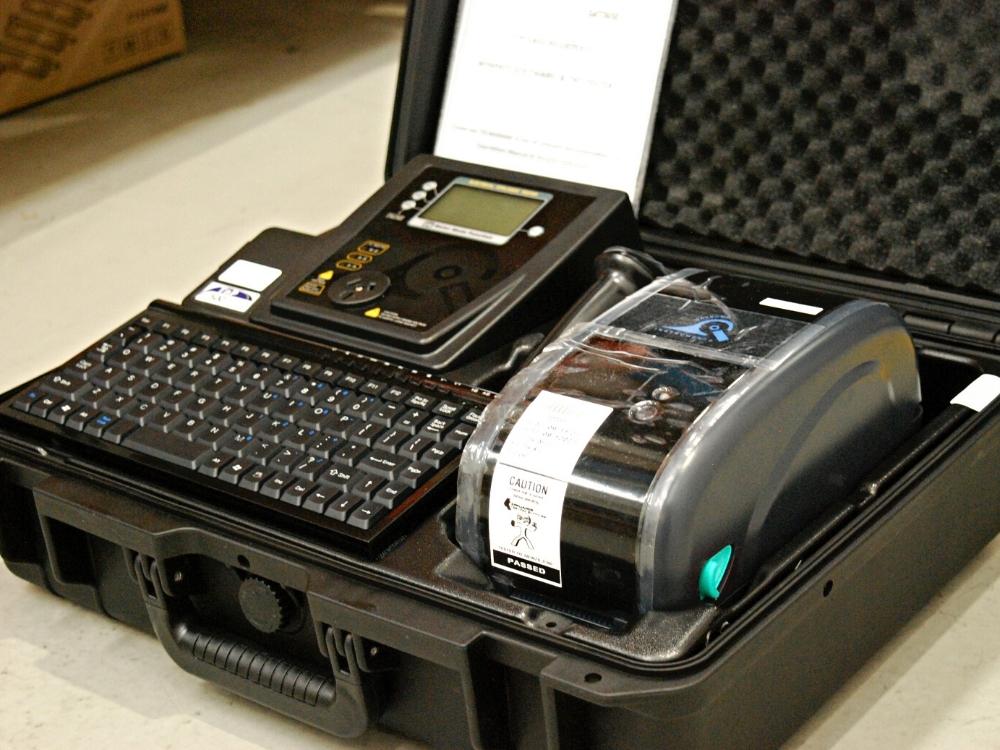

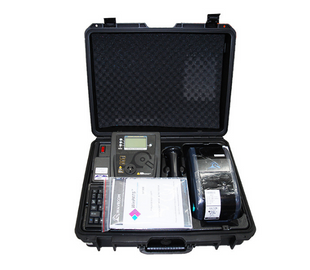

After hands-on experience and plenty of feedback with the TNP-500 Generation 6 by Wavecom, it's clear why this portable appliance tester is a top choice for professionals in 2025 needing efficiency and reliability. Built with a focus on automation and designed for high-volume testing, this all-in-one kit is about making your job quicker, easier, and more accurate. It's packed with features like an in-built isolation transformer, thermal transfer printer and barcode scanner. Plus, it all fits neatly into a tough, heavy-duty carry case that's built for life on the road.
New In-built Isolation Transformer
With the release of the Generation 6 in 2024, the most notable upgrade is the inclusion of an in-built transformer. In previous models, the user would have to buy a seperate transformer to perform all the required electrical tests. Now, with this feature in-built, it basically eliminates the need for an extra accessory - saving both time and hassle.
Onboard Thermal Transfer Printer with Durable Tags
The built-in thermal transfer printer eliminates the need for handwritten tags. You can pre-load your logo and other details, and the unit will print each tag automatically in seconds. The Thermal Transfer Tags are extremely tough and designed for harsh environments, making them ideal for industrial and commercial settings. This effectively means you can use them in any environment. Plus, you can add up to four logos to each tag at no extra cost, ensuring every tag looks professional and consistent.
Barcode Scanner for Retesting
The included barcode scanner is perfect for high-volume testing. When it's time for retesting, simply scan the barcode on the electrical test tag to instantly pull up previous test details. At one point for added flexibility, the TNP-500W model offerered a wireless scanner option, which is ideal if you're constantly moving around job sites, but this model is now obsolete.
Huge Data Storage
The TNP-500 comes with an impressive storage capacity, holding up to 5,000 test records by default, with an optional upgrade to 20,000. The results of your test are automatically stored on the portable appliance tester, which includes site details, description, make, model, location, serial number, asset number, frequency of testing etc. This can then be transferred to your PC via the supplied WinPAT’s Software if you would like to create professional looking reports.
How the TNP-500 Performs in the Field
The TNP-500 shines in environments where speed and accuracy are essential - like warehouses, commercial sites, and industrial facilities. The built-in printer and barcode scanner cut down manual data entry significantly, while the large storage capacity makes record-keeping straightforward. If you're testing hundreds of appliances in a single session, we found this unit makes the process faster and far less error-prone.
However, it's worth noting that this PAT testing kit is best suited for people with high testing volumes. While it's efficient, it requires proper setup to maximise its features. If you're only testing small batches occasionally, some of its automation features might be overkill.
Noticeably, this tester is very easy to use and contains logical user operation. This is highlighted by its simple one button testing and very quick testing times. In addition, progress of your test is shown on the display screen, along with actual results in a large and easy-to-read font and icons.
It comes with an optional 10A or 20A operation, although the more affordable 10A version is the more popular choice. More importantly, the appliance tester can perform all your essential tests, such as Leakage Current, Mains Supply Test, Power Measurement and Extension Leads, as well as an adjustable 250V/500V Insulation Resistance.
Drawbacks to Consider
One of the major drawbacks is that it operates only on mains power. If you often work on sites without easy access to power, this could be an issue. In these cases, battery-powered options might be better suited.
There's also a fairly large learning curve for people new to testing and tagging. While it is user-friendly, full feature setup certainly requires some experience.
Is It Worth the Investment?
The TNP-500 Generation 6 secured its place in our most recent Top 5 PAT Testers for 2025 because it delivers on efficiency and automation. From the built-in printer to the barcode scanner and extensive data storage, every feature is designed to simplify your testing and tagging and reduce downtime. If you’re after a an efficent and reliable test and tag print kit that handles high volumes with ease, the TNP-500 is an investment that makes sense in the long run.
