Wavecom TnP-500 Test and Print Unit
The all new TnP-500 was specially designed to streamline the entire test and tag process, making it particularly ideal for people needing to test a large number of appliances. This might include those operating a test and tag business or obliged to test large facilities or multiple sites.

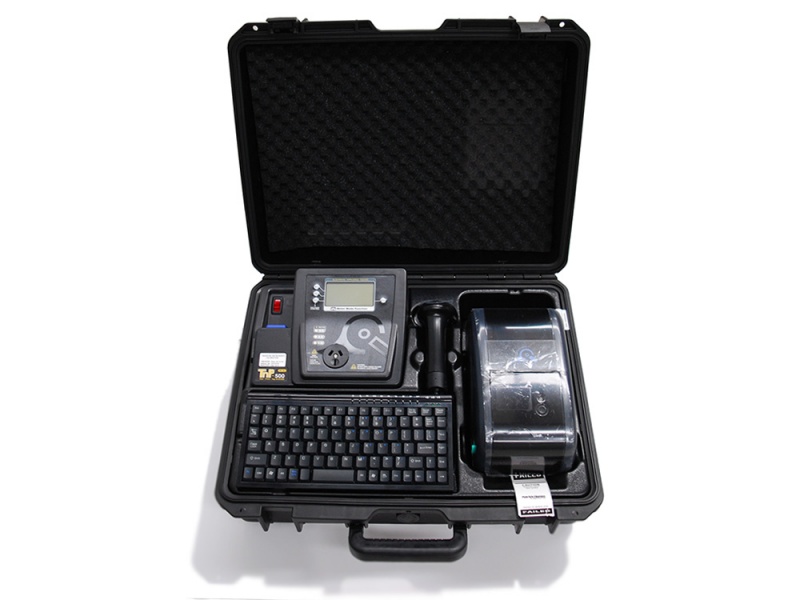

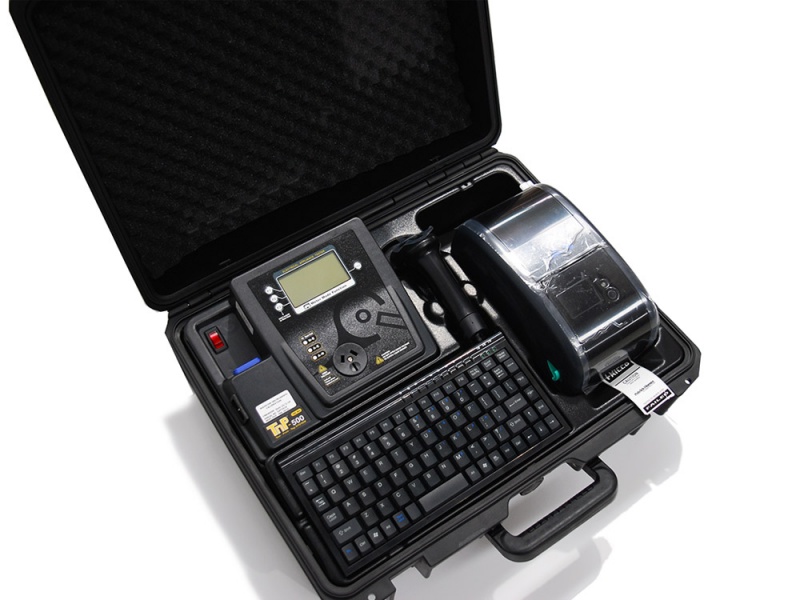

This setup comes completely integrated in a robust carry case, with all accessories you'll need to complete the test and tag process, including a thermal printer, barcode scanner, WinPAT's software and keyboard.
The TnP-500 effectively allows you to print professional tag labels on the spot and then effortlessly re-test items using the barcode scanner. Using WinPAT's Premium software to manage your database of records, you won't need to record any of your results manually, as your appliance tester will seamlessly connect to your computer. This means you can record all your appliances by using the mobile memory unit, while there's also no need to have a PC with you on site when testing.

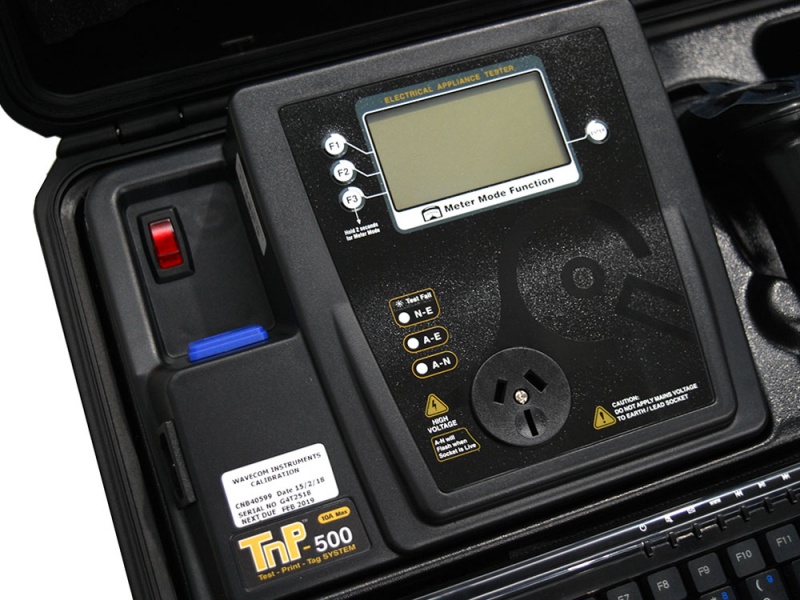

The TnP Appliance Tester will conduct all tests required by AS/NZS 3760 (including RCD testing), with results and progress shown on a large display and one button testing. It can also store up to 5000 items and contains a library of thousands of locations, descriptions, makes, models and user comments. This can then be used to create and print professional reports on your PC.
To help get you started, we've included 1 free roll of 500 printable tags and 1 roll of thermal ribbon.
For more information on this product, read a full review here.
This package is supplied with:
- Generation 4 Wavecom TnP Appliance Tester (with Memory)
- WinPATs Premium Software
- Barcode Scanner
- Thermal Printer
- 1 FREE roll of 500 printable tags
- 1 FREE roll of thermal ribbon
- QWERTY Keyboard

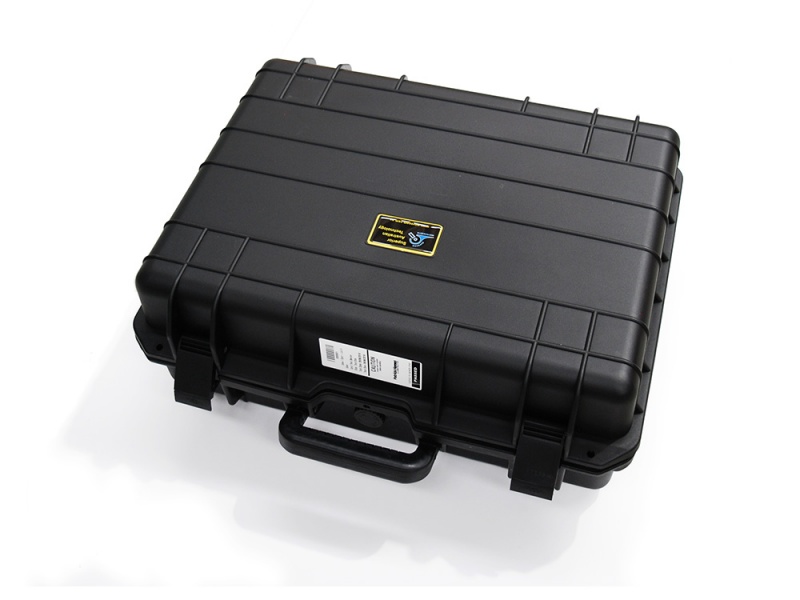

- NEW Heavy Duty Carry Case
- Earth Bond Lead
- 240V Extension Lead Adaptor
- Calibration Certificate
- Manual
*Software is not compatible with MAC (PC only)
SKU: WCMTNP-500
-
2 Years
-
1.3kg
-
5000 items
-
Case: Impact Resistant, Flame Retartant
Size: 170W X 225L X 110H -
Current 200mA DC
Pass Limit < 1.0Ω -
Settable Trip, 2 - 500 MA ± <2.5% Of Valve
Trip Time, 0 - 300 MS ± <1 MS -
Voltage: 200 To 265VAC
Load Current: 0.0 To 10Amp
Apparent Power: 0 To 2400VA
Power: 0 To 2400W -
Voltage: 200 To 265VAC
Load Current: 0.0 To 10Amp -
Class 1 Pass ≤ 5 MA RMS
Class 2 Pass ≤ 1 MA RMS -
230 VAC - 260 VAC. 3W. 50hZ
-
500v, 250V Selectable
-
Load Current Max, 10A
-
Circuit Continuity Test 240VAC @ 2mA
-
CAT III 300V
Internal Fuse Protected 1A
DUT Test Protected At 10A
A full spec sheet is available to download
