DeltaPAT & Godex Printer

DeltaPAT & Godex Printer

Metrel | SKU: SPDELTA&GODEX
In stock

IN STOCK

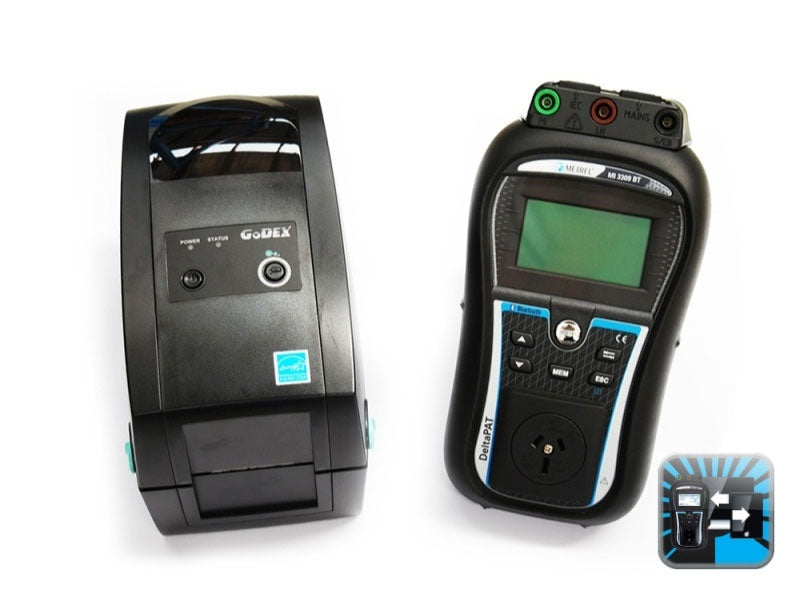

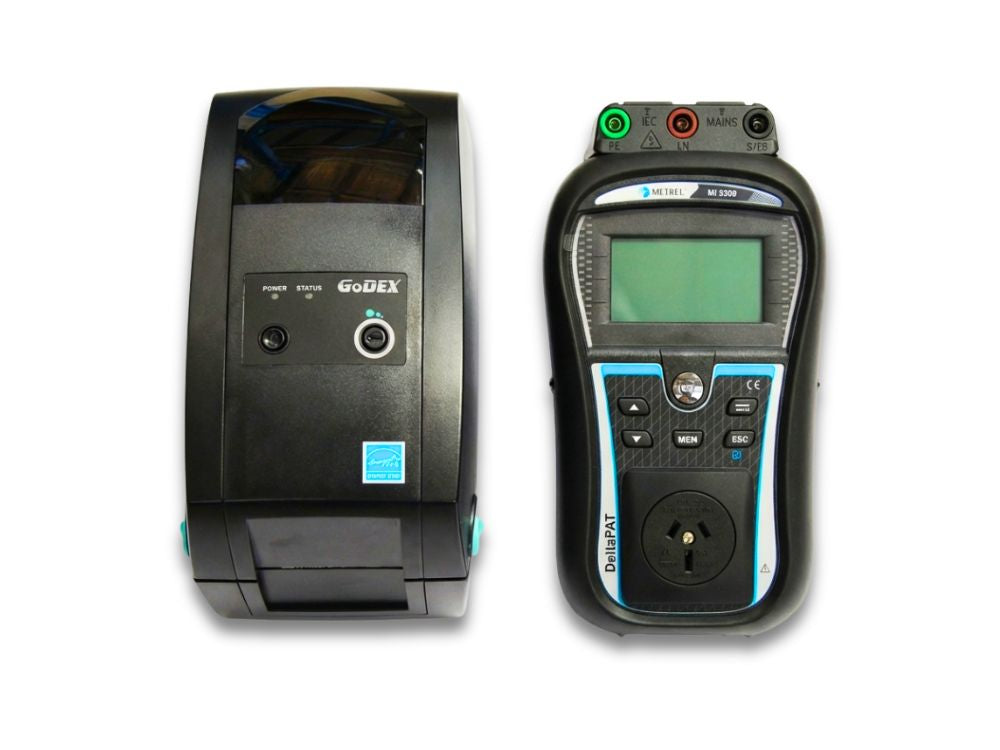

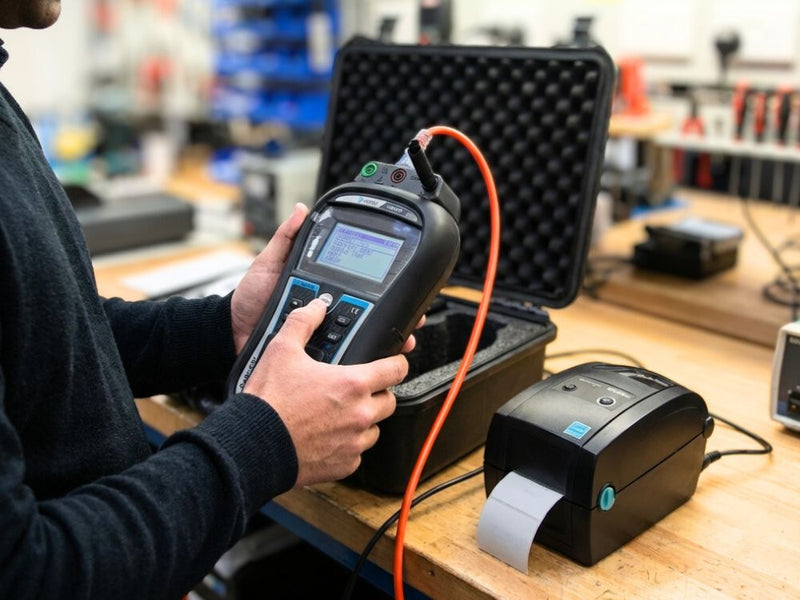

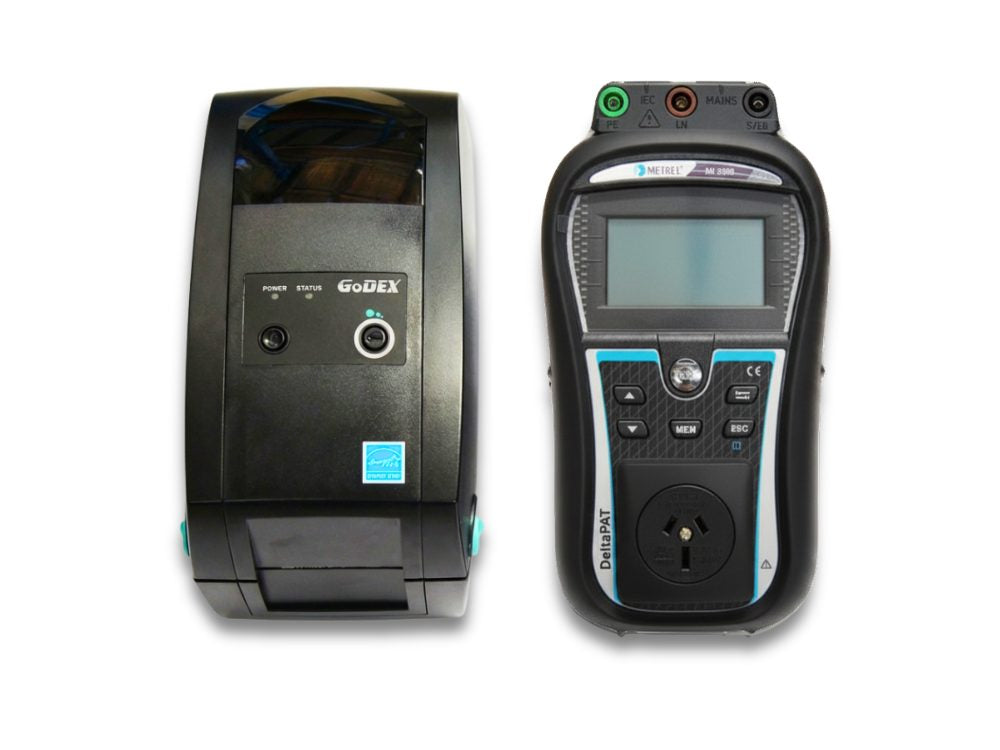

The DeltaPAT 3309 BT + Godex Printer Pack (choose PATlink or aPAT software) combines a trusted portable appliance tester with Bluetooth-enabled tag printing, giving you everything needed to test and tag onsite without cables or hassle.

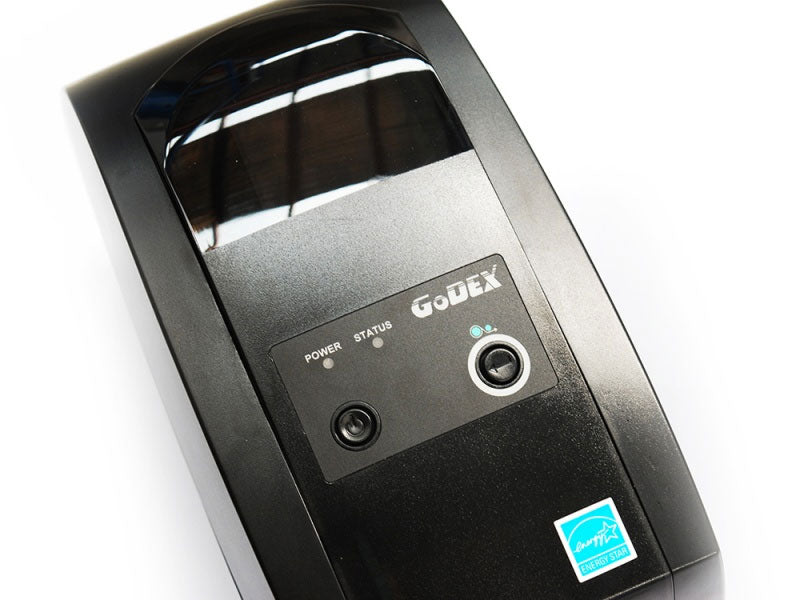

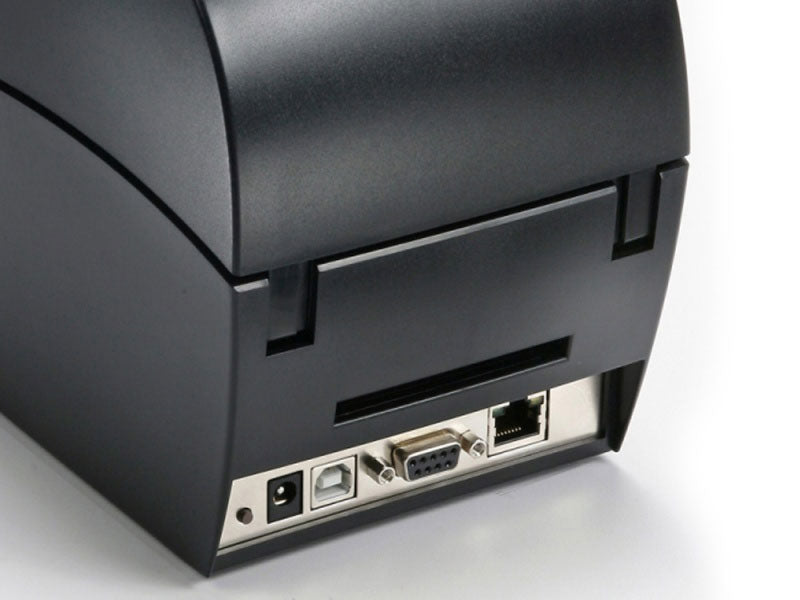

The Godex RT200 thermal transfer printer produces UV and heat-resistant tags, built to withstand harsh environments, while the DeltaPAT 3309 BT ensures fast, compliant testing.

Together, they deliver a complete, ready-to-go solution for professionals who need durability, efficiency, and compliance in one package.

$2,869.90
$2,869.90
(incl. GST)
% OFF Contact Us to Order
Taxes included.
Software
FREE Australia-wide DeliveryFREE Express Shipping Money-Back Guarantee30-day Returns
Same Day DispatchSame Day Dispatch Lifetime Technical SupportLifetime Support
Have a question?Have a question? Call 1300 656 938 or email us

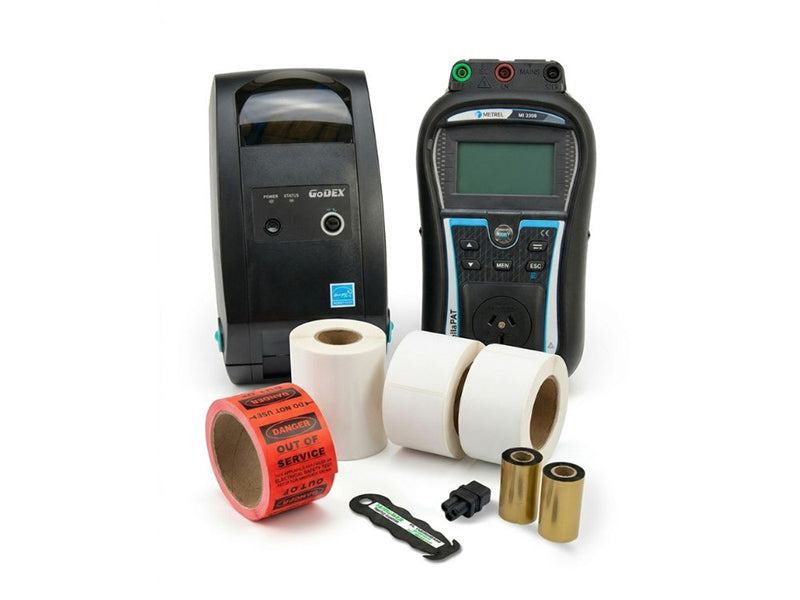

What's Included

  • Metrel DeltaPAT MI 3309 BT
  • Godex RT200 Bluetooth Printer
  • Your choice of PATLink or aPAT for Android
  • 1 x Roll of 500 Labels
  • 1 x Roll of Thermal Ribbon
  • Company Logo Upload
  • Metrel ES Manager PC Software
  • All Test Leads and Probes
  • Calibration Certificate

Key Features

  • Bluetooth Printing: Connect wirelessly between the DeltaPAT and the Godex printer via the Android app
  • Thermal Transfer Printing: Create UV and heat-resistant test tags on the spot
  • Software Choice: PATLink for simple field testing, or aPAT for advanced asset management and recording results
  • Custom Tag Information: Choose QR codes or barcodes, along with your company logo, test user and test dates
  • Battery or Mains Powered Testing: Flexible power options for any job site
  • Tests Portable and Fixed RCDs: No external isolation transformer needed
  • Internal Memory: Store up to 1500 test results onboard
  • USB & RS232 Export: Download test data to a PC for reporting

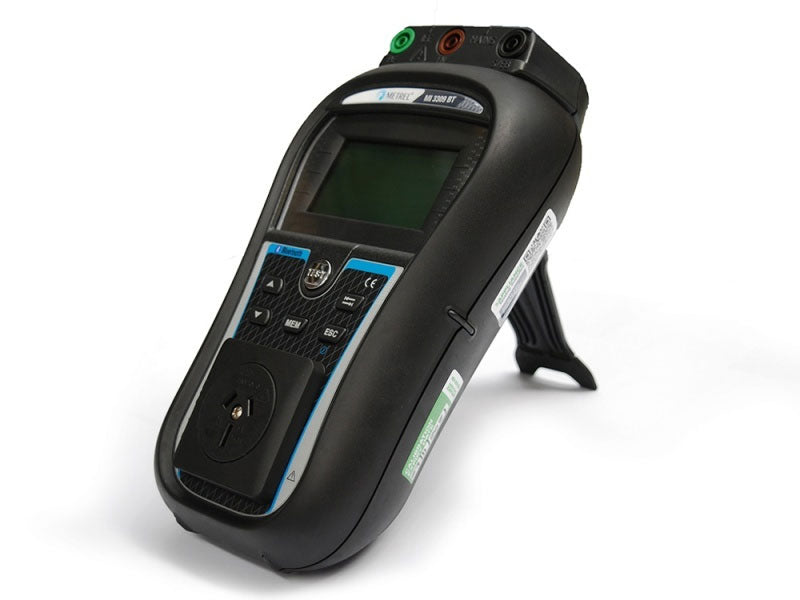

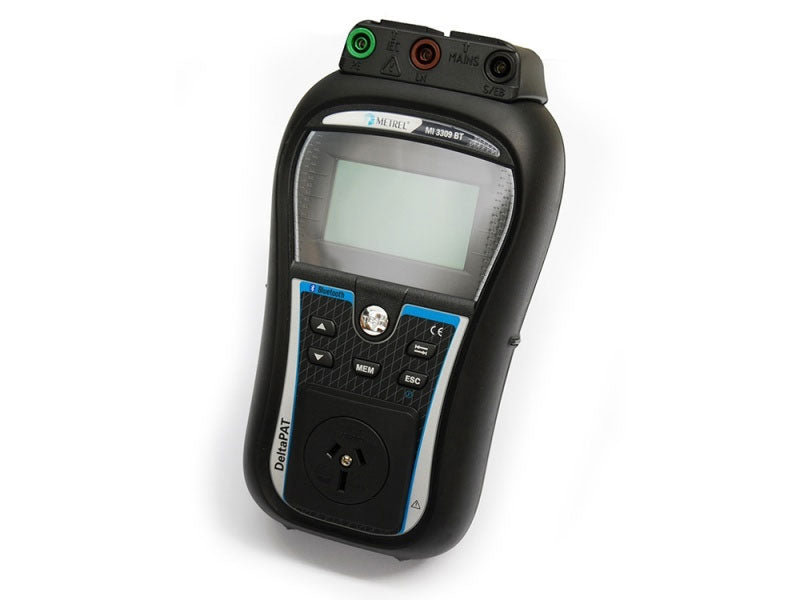

DeltaPAT 3309 BT Specifications

Warranty: 2 Years
Dimensions: 14cm x 8cm x 23cm
Weight: 1.2kg
Operation: 10 h
Power Measurement: Voltage: 230 V AC
Range: 0.00 kVA ÷ 4.00 kVA
RCD Testing: 10mA, 15mA, 30mA
Touch Leakage Current: Voltage: 230 V AC
Range: 0.00 mA ÷ 7.0 mA
Diff. Leakage Current: Voltage: 230 V AC
Range: 0.00 mA ÷ 7.0 mA
Insulation Resistance: Voltage: 250 VDC or 500 VDC
Range: 0.00-199.9 MΩ
Earth Continuity: 200 mA in to 2.00 Ω
Range: 0.00-1999 Ω
Polarity Test: <50 V AC
Voltage TRMS Range: 80 ÷ 300 V
Overvoltage Category: CAT II / 300 V
Protection Degree: case IP 40/connectors IP 20

Download the full tech specification

View full details
DeltaPAT & Godex Printer
$2,869.90
$2,869.90
(incl. GST)
DeltaPAT & Godex Printer
$2,869.90
$2,869.90
(incl. GST)
Trustpilot

Metrel DeltaPAT 3309 BT Overview & Key Features

Frequently Asked Questions

How is the Godex printer different to other printers?

It’s industrial-grade and durable. Thermal transfer printing creates UV and heat-resistant tags that last, even in harsh environments, while also avoiding smudging or fading over time.

Do I need a tablet to use it?

Yes. You pair the DeltaPAT tester with an Android device via the PATLink app. The printer handles the heavy-duty printing, while your device sends the data.

Can I export my test results for reporting?

Yes. The tester stores all data, which can be exported via USB or the ES Manager software to your PC for full reports.
