Wavecom TNT + XM

Wavecom

| Product Demo

Free PAT Delivery

Dispatched Same Day

100% Money Back Guarantee

The Wavecom TNT + XM differentiates itself from other appliance testers by its ability to test up to 20A equipment, while also capable of storing up to 5000 test records. It also has the added benefit of being supplied with WinPAT's software for asset management and keyboard for data entry.

$1,889.00 Excl. GST

Starter Pack

Quantity:

1300 656 938

If you have any questions about this product,
call our customer service or send us an e-mail.

Product Description

Generation 4 Wavecom TNT + XM

The TNT + XM is considered an upmarket Portable Appliance Tester that sets itself apart from the other Wavecom Generation 4 models by its ability to test up to 20A equipment.

Similar to the TNT + M, you can still test all 240V electrical appliances, test fixed and portable RCDs, communicate to your PC (WinPATs MX Base software included) and an in-built memory to store 5000 test records (with up to 8 tests per record and 40,000 total assets).

Features

20 amp operation
Stores 5000 test records
Tests both fixed and portable RCD testing
Unit displays actual test readings
PASS/FAIL indicator

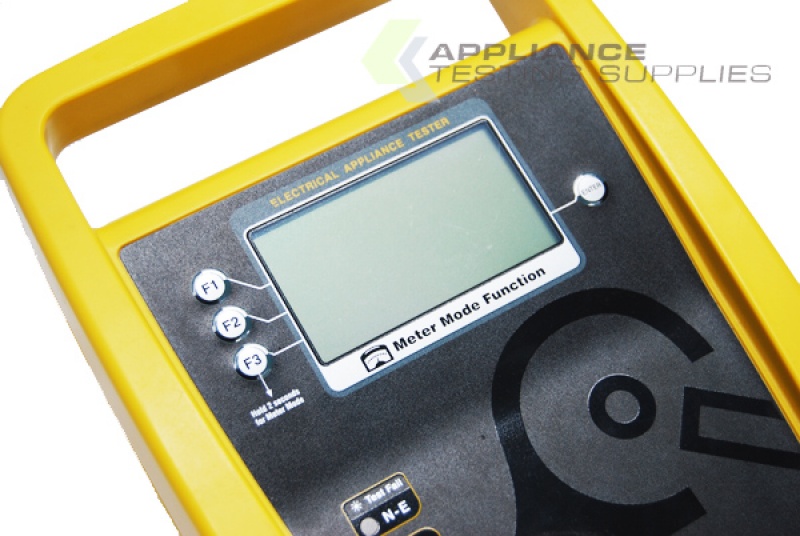

Meter Mode function
Impact resistant and flame retardant casing
Built-in carry handle
Processor firmware factory updateable

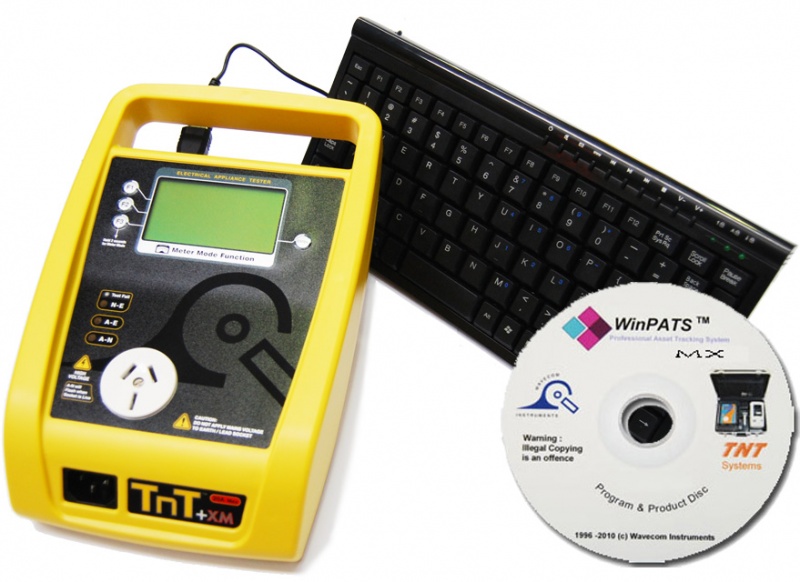

Unit Supplied with: 240V Extension Lead Adaptor, Earth Bond Lead, Manual, WinPAT's MX Base Software, Keyboard & Calibration Certificate

*Software is not compatible with MAC (PC only)

Specifications

Warranty
2 Years
Power Test
Load Current Max: 20A
Mechanical
Case: Impact Resistant, Flame Retardant
Size: 170W X 225L X 110H
Lead Cont./ Polarity
240 VAC @ 2 MA
Power Measurement
Voltage: 200 To 265VAC
Load Current: 0.0 To 20Amp
Earth Bond
Current: 200 MA DC
Pass Limit < 1.0Ω
Earth Leakage
Class 1 Pass ≤ 5 MA RMS
Class 2 Pass ≤ 1 MA RMS
RCD Test
Settable Trip Current, 2 - 500 mA± <2.5%
Trip Time, 0 - 300 mS ± <1 mS
Insulation Test
500v *250v Selectable
Input
230 VAC - 260 VAC. 3W. 50hZ
Weight
1.4kg
Meter Mode
Voltage: 200 To 265VAC
Load Current: 0.0 To 10Amp
Apparent Power: 0 to 2400VA
Power: 0 to 2400W
Safety
CAT III 300V
Internal Fuse Protected 1A
DUT Test Protected at 20A
