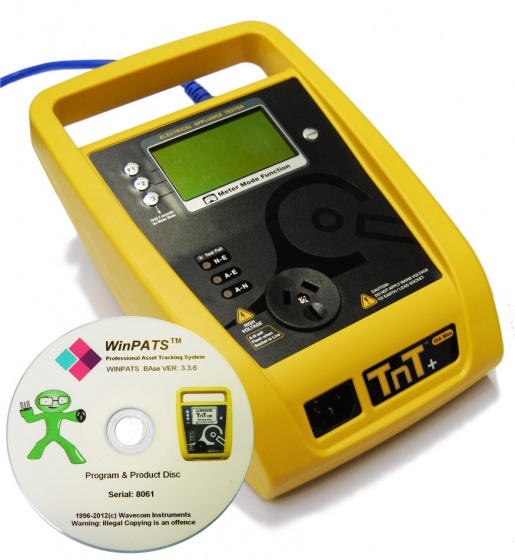

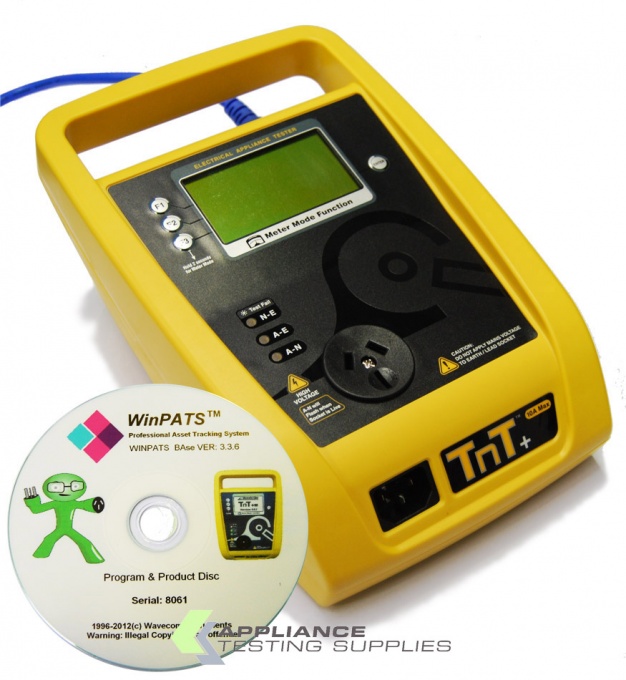

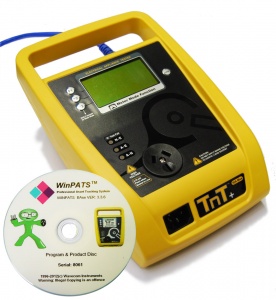

Wavecom TNT + (RCD testing)
The TNT + is one step above the TNT RCD and still remains just as easy-to-use.
The added benefit of of using the TNT + is that you can connect it to your PC or laptop by using the USB and WinPAT's software that's included. It's still capable of testing all 240V portable appliances, including RCD's (Isolation Transformer required)

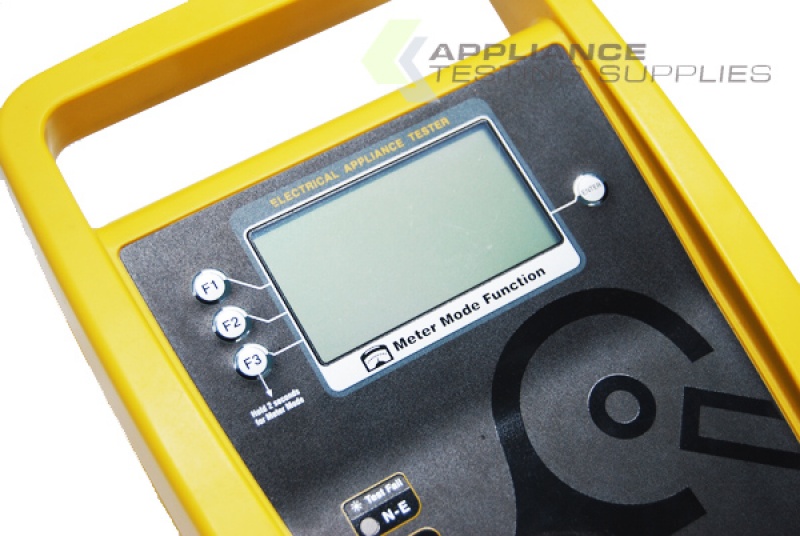

Similar to the other Gen 4 models, It has Wavecom's new Meter Mode function which display's volts, amps, true power and reactive power of an individual appliance.
Features
- Connects to your PC through a USB port and WinPAT's Software
- Unit displays actual test readings
- PASS/FAIL indicator
- One button testing
- Meter Mode function
- Impact resistant and flame retardant casing
- Built-in carry handle
- Processor firmware factory updateable
- Fully compliant to the AS/NZS3760:2010 standard
Free WinPAT's Software
WinPATs Base asset tracking system and appliance testing software has limited report functionality, lets you have 1 data base and can hold up to 1000 records. (exclusive to Appliance Testing Supplies) *Software is not compatible with MAC (PC only)
Warranty: 2 Years

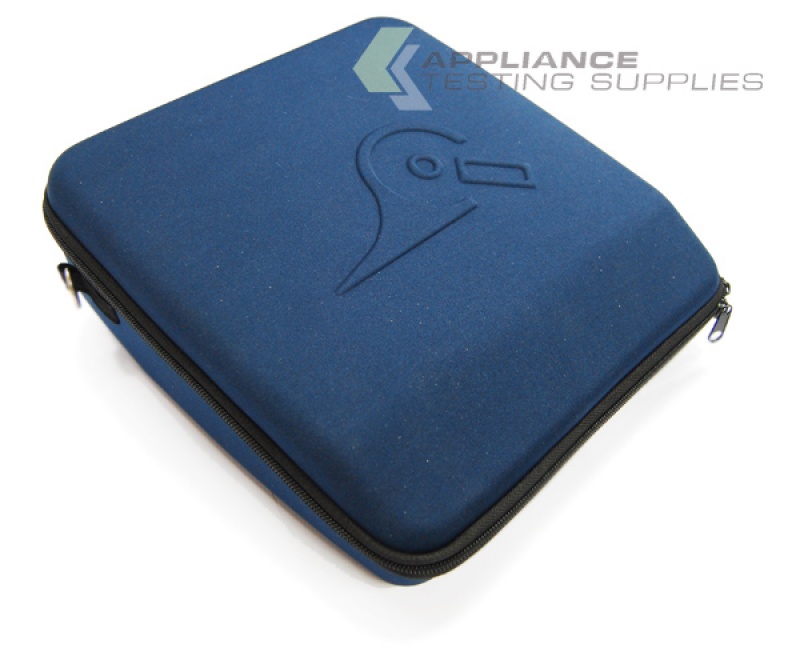

Unit Supplied with: Carry Case, 240V Extension Lead Adaptor, Earth Bond Lead, Calibration Cerificate, Manual & WinPATs Base Software
-
1.3kg
-
CAT III 300V
Internal Fuse Protected 1A
DUT Test Protected at 10A -
Class 1 Pass ≤ 5 MA RMS
Class 2 Pass ≤ 1 MA RMS -
Current: 200 MA DC
Pass Limit < 1.0Ω -
500v *250v Selectable
Pass Limit > 1MΩ -
240 VAC @ 2 MA
-
230 VAC - 260 VAC. 3W. 50hZ
-
Voltage: 200 To 265VAC
Load Current: 0.0 To 10Amp
Apparent Power: 0 To 2400VA
Power: 0 To 2400W -
Voltage: 200 To 265VAC
Load Current: 0.0 To 10Amp -
Settable Trip, 2 - 500 MA ± <2.5% Of Valve
Trip Time, 0 - 300 MS ± <1 MS -
Case: Impact Resistant, Flame Retardant
Size: 170W X 225L X 110H -
2 Years
-
Load Current Max, 10A
