Kyoritsu 6201A
call our customer service or send us an e-mail.
Please note, the Kyoritsu 6201A is now discontinued and is being replaced by the Kyoritsu 6205.
Kyoritsu 6201A

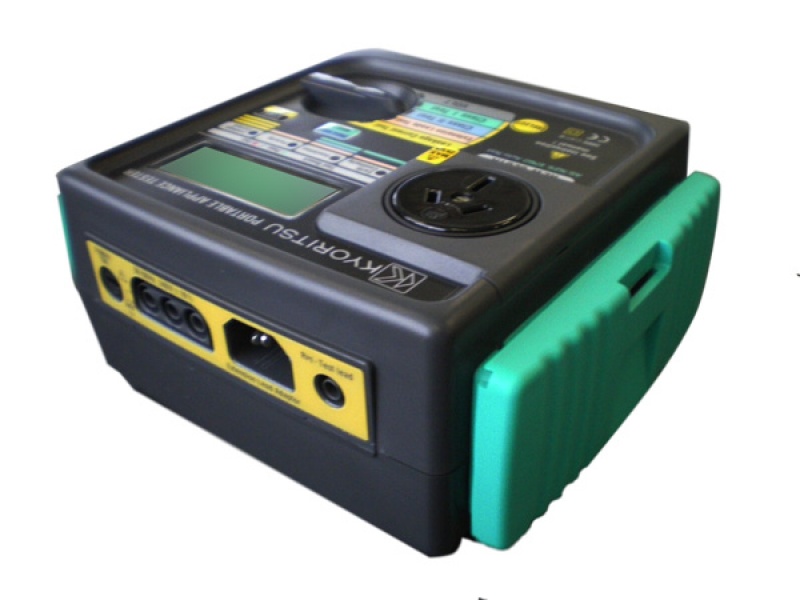

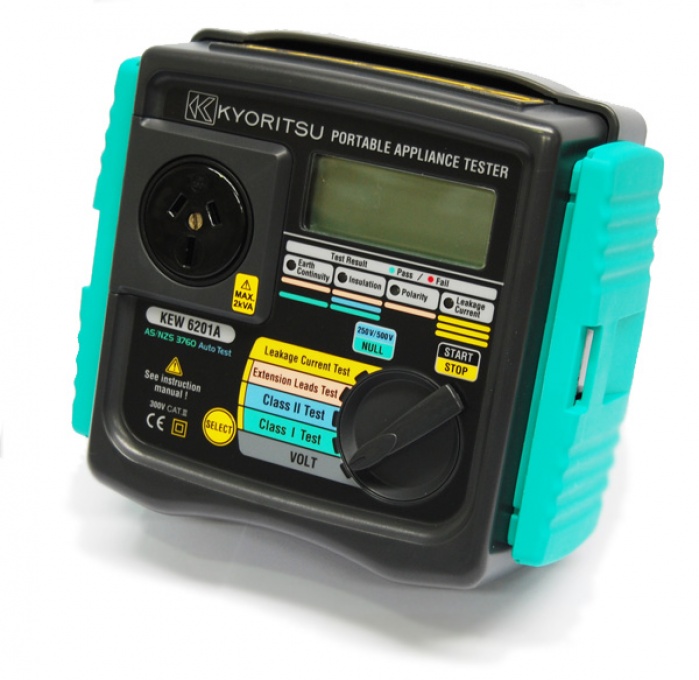

The highly durable 6201A Portable Appliance Tester is an extremely easy-to-use entry level appliance tester.
Known for being robust and highly reliable, it'll test appliances and extension leads in accordance with AS/NZS 3760 including those with electronic switches.

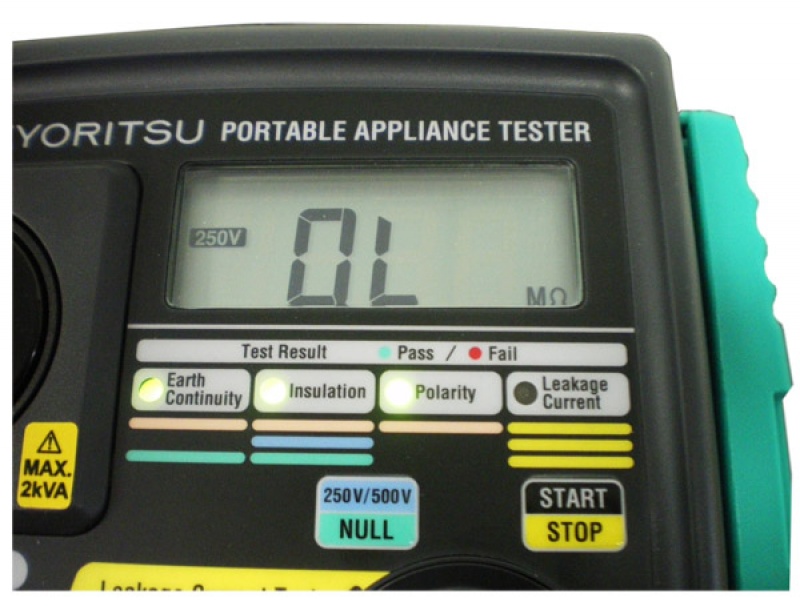

The 6201A is a very simple tester to use - just by turning the rotary dial to the test you want, it will automatically complete the tests in less than 5 seconds. In addition to this, it also features a convenient auto test sequencing function. When your test is complete, the 6201A's large LCD display will indicate a PASS or FAIL clearly with its four LED lights.

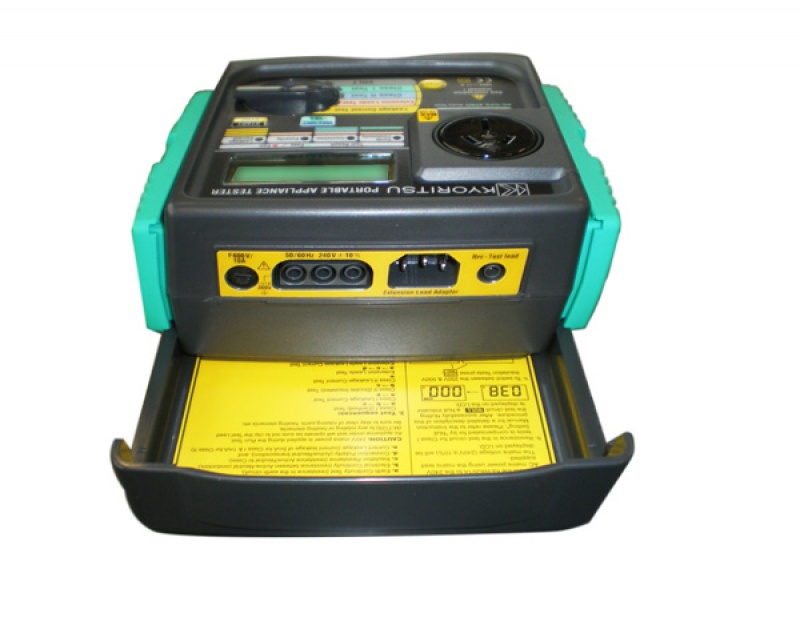

Unit Supplied with: Carry Case (for leads), Certificate of Calibration, Manual, Earth Bond Lead, 240V Extension Lead Adaptor, Power Supply Lead
For more information on this product, read a full review here.
-
185 (L) × 167 (W) × 89 (D) mm
-
1kg
-
IEC 61010-1 CAT.III 300V, Pollution Degree2
IEC 61326-1 EMC requirements -
207~264V
-
50/60Hz±1%
-
Measuring Range: 0-19.99Ω
Resolution of Measurement: 10mΩ
Short Circuit Current: 200-250mA DC
Open Circuit Voltage: ±5.0 ±0.4V DC
Accuracy: ±(2%rdg + 3dgt) -
Rating: 500V, 250V
Range: 0-19.99/0-199.9MΩ
Output Voltage: 500V DC, 250V DC
Current: 10mA DC or less
Accuracy: ±2%rdg +3dgt -
Range: 180-260V
Measurement: 1V
Accuracy: ±2%rdg +3dgt
A full spec sheet is available to download
